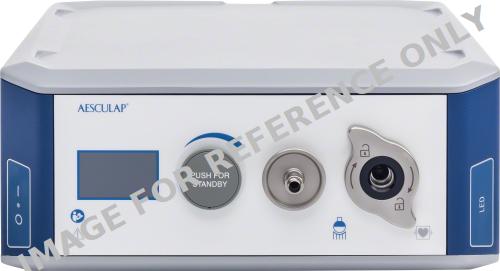

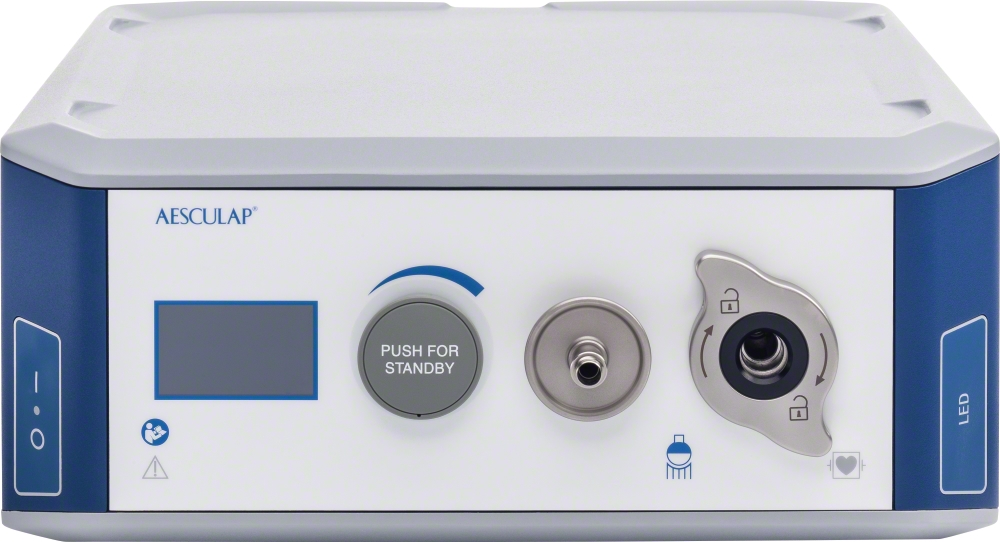

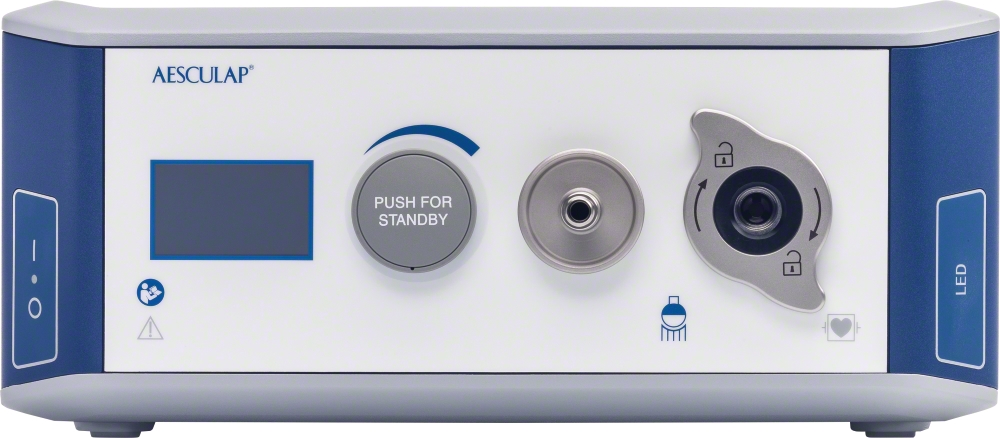

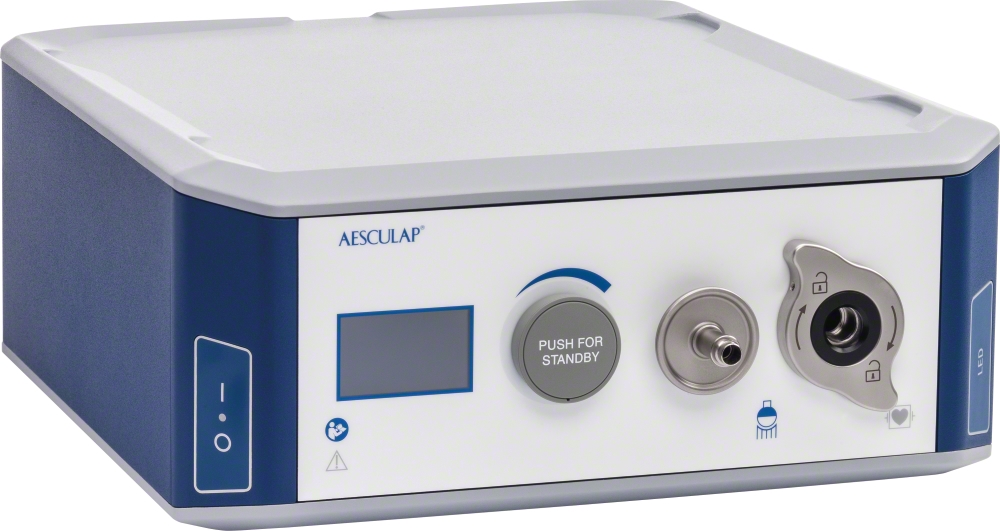

LED LIGHT SOURCE | B. Braun
- Product Search Type
- Light Source
- Aesculap Product Groups
- Endoscopic Technology
- Product family
- Equipment
- Type
- LED
- Width (mm)
- 330.000 mm
- Height
- 146.000 mm
- Depth (mm)
- 362.000 mm
- System
- LED
- Integrated spare lamp
- No
- Lamp intensity increase
- continuously
- Power supply
- 100-240 V AC, 50/60Hz
- Maximum power consumption
- 625.0 VA
- Weight
- 8.50 kg
- to be used with (code)
- OP906, OP913, OP914, OP923
- Discipline
- Urology, Arthroscopy, General / Visceral Surgery
- Type of Sterilization
- not to be sterilized
- Protection level acc EN_606011
- CF
- Safety class acc to EN 60601-1
- I
- Tested acc to norm
- EN 60601-1, EN 60601-1-2
- Product contains Latex
- No
- Sterility
- non-sterile
- Disposable / Reusable
- reusable
