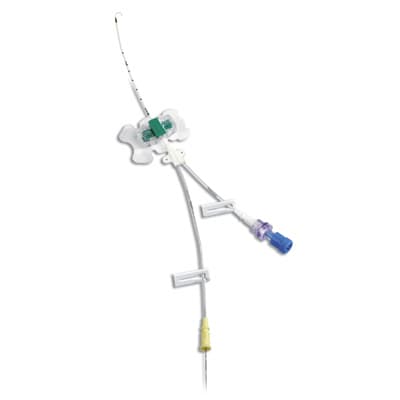

Double-lumen catheter set for paediatrics and neonatology according to the Seldinger method with the possibility of ECG based Central Venous Catheter tip placement and position control
Set consists of:
Seldinger needle (S)
Kink-proof guide wire with flexible J-tip
Double-lumen catheter: Soft catheter tip / X-ray detectable, opaque / Two lumen (size depending on set configuration): 4F: distal = 22 G; proximal = 22 G / 5F: distal = 18 G; proximal = 20 G / Length markings / Color-coded Luer-Lock hubs / Fixation wings at the channel junction for securing the catheter
Movable fixation with fixation wings for catheter fixation at the puncture site
