By using B. Braun IV filters the overall complication rate could be reduced by 10%. Using IV filters also makes sensefinancially: the length of ICU stay can be decreased by almost one day / patient which represents a 23% drop – a substantial economic advantage because additional patients a year can be admitted. In a study, this led in turn to an increase in revenue because no patients had to be turned away due to lack of capacity.^1,2

Supor^® membrane 0.2 µm, effective filtration area 4.5 cm² made out of Polyethersulfone (PES)

helps to prevent particulate contamination by retaining particles > 0.2 µm.³
reduces microbiological contamination by retaining bacteria and fungi. ^{4, 5}
reduces the risk of medication error. Solid particles > 0.2 µm occurring from incompatibility reactions are retained by the IV filter membrane.³ Blockage of filter membrane can be an alarming signal for an incompatibility reaction which could have severe clinical consequences for the patient when being infused.
positively charged to retain endotoxins.³

Venting function - two 0.02 μm hydrophobic PTFE-membranes to

reduce the risk of air embolism regardless position of filter. The hydrophobic characteristic of the membrane blocks the passage of air and successfully vents the excess air out of the system.³

Technical data

Connections at both sides of the filter with luer lock fittings
Tubing diameter: 1.2 x 2.2 mm (PVC, DEHP-free)
Priming volume housing: 0.7 ml
Filling volume (incl. tubing): 1.19ml
Flow rate (aqua dist.): 10ml/min
Pressure resistant up to 2 bar (Burst pressure filter housing 3.1 bar)
Total set length: 37 cm
DEHP-free
Use of filter for up to 96h

The device can be used for all patients for which infusion therapy is prescribed. No gender or age related limitations. Intrapur® Paed can be used for adults, pediatric and neonates.

Contact

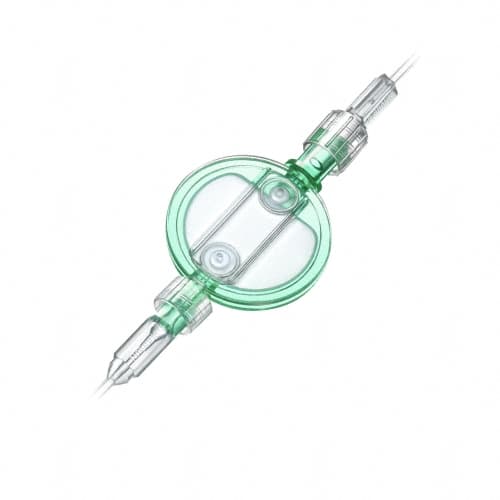

Intrapur® Paed0.2 µm infusion filter with positively charged membrane

Articles

Overview & Texts

Documents

Video

Intrapur® Paed
0.2 µm infusion filter with positively charged membrane
