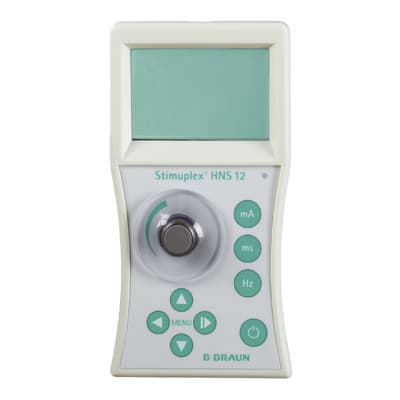

Stimuplex® HNS 12Nerve stimulator for peripheral nerve blocks
The enlarged full graphic LC-display gives you all necessary information at a glance, High contrast and a wide viewing angle ensure readability.
The following information is permanently displayed:
- Stimulus amplitude in mA (large digits)
- Stimulus duration in ms
- Stimulus frequency in Hz
- Load impedance in kOhm
- Charge delivered in nC (if activated)
