3-part drip chamber design

With elastic bottom chamber and transparent dome. Allows to see drop forming and constant visual monitoring of the flow rate of infusion solutions.
With Micro-Organism tight air vent filter (bacteria-tight and viral filter efficiency) with closable snap cap. Prevents the risk of contamination while venting the solution container
With fluid filter (15µm mesh size) to provide high flow rate
With clear and easy to pierce spike, featuring separated fluid inlet and air outlet to reduce risk of air entrainment

Tube

Roller clamp

Patient connector

With Luer Lock or screw tight Spinlock adapter to prevent inadvertent disconnection (refer to available versions)
With back check valve to reduce the risk of back flow (versions with back check valve)

Material related information

Not manufactured with latex / natural rubber
Not manufactured with DEHP
Not manufactured with PVC (only applicable for versions with PUR tubing)
Not manufactured with BPA (except IV-Sets with Spinlock adapter, Discofix® stopcock and/or needle-free injection ports)

Duration of use

Duration of use is dependent on the intended therapy according to the SPC of the drug or solution
In general, change of IV administration sets should occur according national guidelines (e.g. CDC guideline) and/or hospital protocols
IV administration pressure sets (P) should be changed after 24h at the latest if used with an infusion pump

Options of standard add-on-devices; for example

Various tubing lengths for e.g. better patient mobility
Tubing material not made with PVC or tubing material UV-protected up to 500nm wavelength to comply with SPC of corresponding drugs
Infuvalve® back check valve preventing backflow of solutions and blood
Discofix® stopcock for needle free injection, aspiration and parallel infusion
Needle-free IV access with SafeFlow® or CareSite® connectors to reduce the risk of needlestick injuries

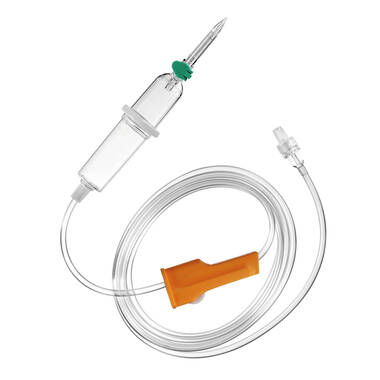

Intrafix® PrimelineStandard IV administration set for infusion therapy
