For bipolar temporary transvenous cardiac stimulation or electrophysiological monitoring in patients with impaired impulse formation or conduction disorders

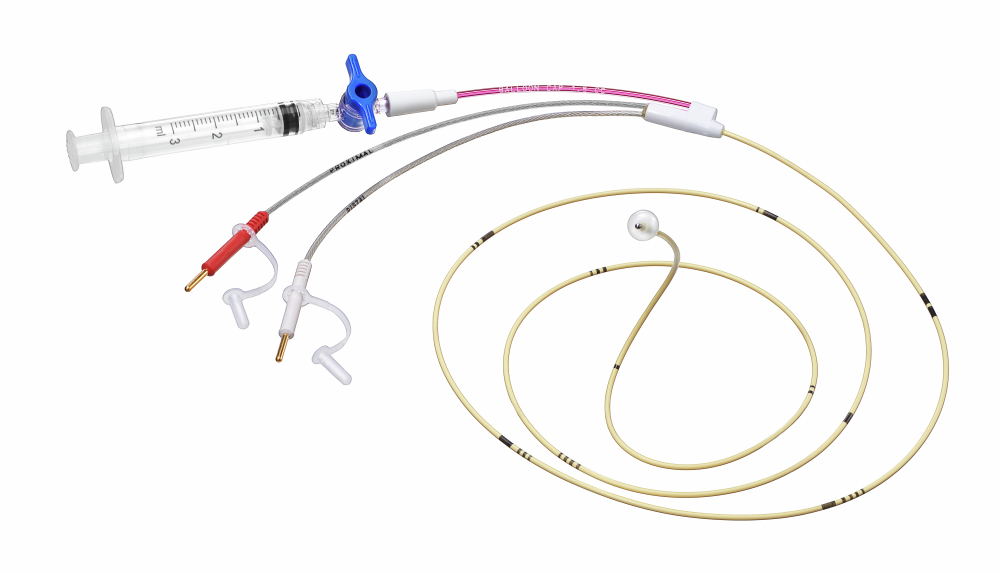

Eledyn EB 10
Catheter, made of PUR
Shaft length: 110 cm
Shaft diameter: 5 F
Markings every 100 mm from catheter tip for precise positioning
Electrode spacing: 10 mm
Electrode connector with touch protection
Radiopaque

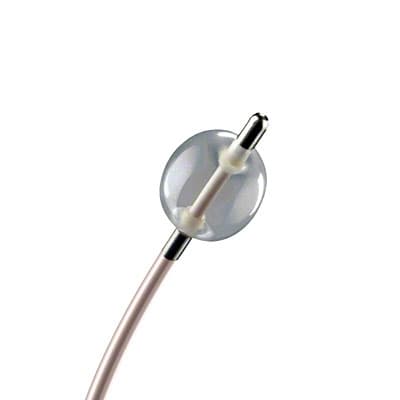

Ballon, made of latex
Inflation syringe
Disposable syringe with plunger brake for defined air and CO₂ dosing
Add-on Set for Eledyn in 5 F and 6 F
Intradyn venous hemostatic introducer with three-way stopcock
Contamination protection
Disposable drape, Fig. 11
Seldinger puncture needle, 1.3 × 70 mm (18 G)
Guide wire J3, 70-035
Compresses 10 × 10 cm, 12-ply
EasyConnect Adapter Kit
Screw-type pin adapter for connecting 2 mm plug connectors
